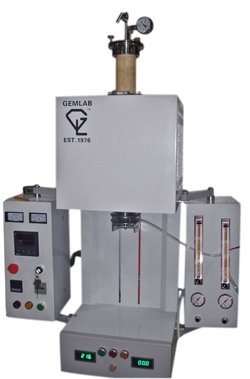

| MAXXI MUFFLE FURNACE (MODEL F-M76-1700) |
Model M76-1700 is a medium size 1700oC, with large
muffle furnace with full atmosphere control or in vacuum. |
FEATURES
- True 1700oC furnace temperature
- Load 3,000 cts of corundum
- Three different options of heating
- Half & full muffle with flanges
- Full oxidizing, reducing, vacuum
- Top-bottom loading via elevator
- Modular floor-model configuration
- Very economical to purchase
- Safe and very easy to operate
- One year warranty (electronics)
TECHNICAL
- 1900-grade hot face insulation
- 1800-grade MoSi2 elements
- Auto, 51-step temperatures programmer controller (±1oC)
- B-type, 20/40 thermocouple
- Temp.limit controller
- SCR (Silicon Control Rectifier)
- Re-circulating water cooler
- Vacuum pump with gauge
- Full front panel instruments
- Weight 108 kg
- 2.2 KVA, 1-phase 220Vac 20A
|
|
| M-76-1700. Three different options for heating your stones |
OPTION A.
FULL MUFFLE |
OPTION B.
HALF- MUFFLE |
OPTION C.
HALF- MUFFLE |
| Top-bottom loading,
gas purging where
precise atmosphere
control is important. |
Top-loading gas purg-ing with precise atmos-phere control or in vacuum into half-muffle. |
Bottom loading gas
purging with precise atmosphere
control, or vacuum
into half-muffle. |
|
|
|
- Slow-fast cooling
- With/no additives
- Gas purging or
- Low vacuum
- Capacity: 3,000 cts of rubies-sapphires
|
- Slow cooling
- With/no additives
- Gas purging or
- Low vacuum
- Capacity: 3,000 cts of rubies-sapphires
|
- Slow/fast cooling
- With/no additives
- Gas purging or
- With vacuum
- Capacity: 3,000 cts
of rubies-sapphires
|
|
|
|
|
