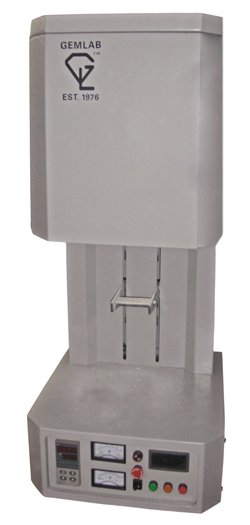

| MINI MUFFLE FURNACE (MODEL F-M40-1700) |
ModelM40-1700isadesk-top1700oC,smallestsize,smallest load
vertical muffle furnace with full atmosphere control or in vacuum. |
FEATURES
- True 1700oC furnace temperature
- Load capacity 1,500 cts of
rubies-sapphires
- Three different options of heating
- Half & full muffle with end flanges
- Full oxidizing, reducing, vacuum
- Top-bottom loading via elevator
- Desk-top size (35Wx35Lx80H) cm
- Light weight (only 50 kilos)
- Very economical to purchase
- Safe and very easy to operate
- One year warranty (electronics)
TECHNICAL
- 1900-grade hot face insulation
- 1800-grade MoSi2 elements
- PID, auto, 51-step temperature programmer controller (±1oC)
- Long-life B-type thermocouple
- SCR (Silicon Control Rectifier)
- Re-circulating water cooling unit
- Vacuum pump with gauge
- Front panel instrumentation
- 1 KVA plugs to any 220Vac 10A
|
|
| M-40-1700. Three different options for heating your stones |
OPTION A.
FULL MUFFLE |
OPTION B.
HALF- MUFFLE |
OPTION C.
HALF- MUFFLE |
| Top-bottom loading,
gas purging where
precise atmosphere
control is important. |
Top-loading gas purg-ing with precise atmos-phere control or in vacuum into half-muffle. |
Bottom loading gas
purging with precise atmosphere
control, or vacuum
into half-muffle. |
|
|
|
- Slow-fast cooling
- With/no additives
- Gas purging or
- Low vacuum
- Capacity: 1,500 cts of rubies-sapphires
|
- Slow cooling
- With/no additives
- Gas purging or
- Low vacuum
- Capacity: 1,500 cts of rubies-sapphires
|
- Slow/fast cooling
- With/no additives
- Gas purging or
- With vacuum
- Capacity: 1,500 cts
of rubies-sapphires
|
|
|
|
|
